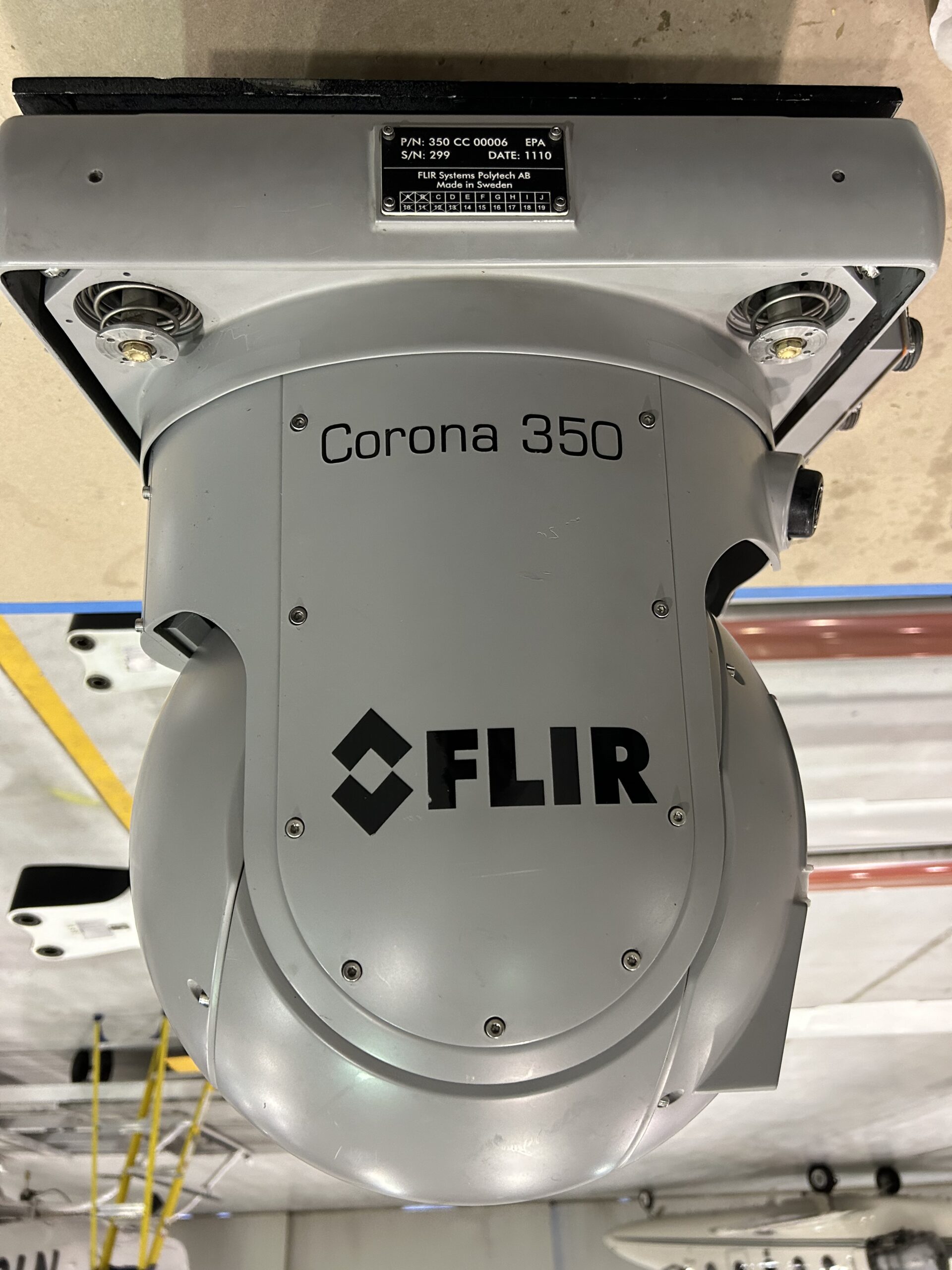

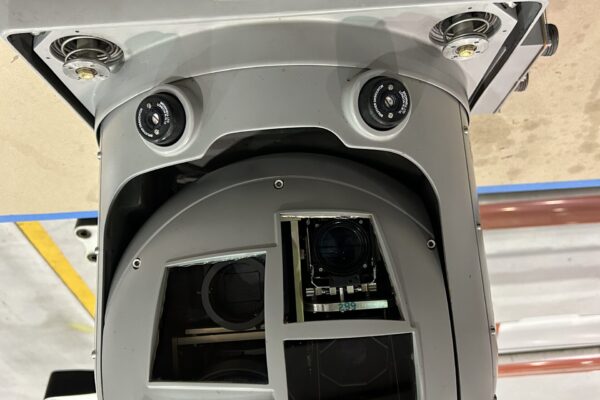

FOR SALE: FLIR 350 Camera System SN #299
For Sale $150,000.00

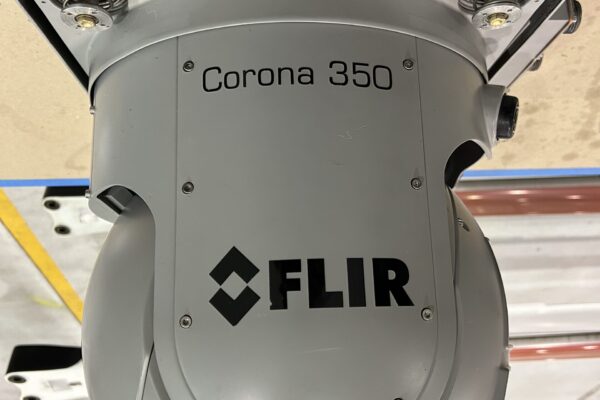

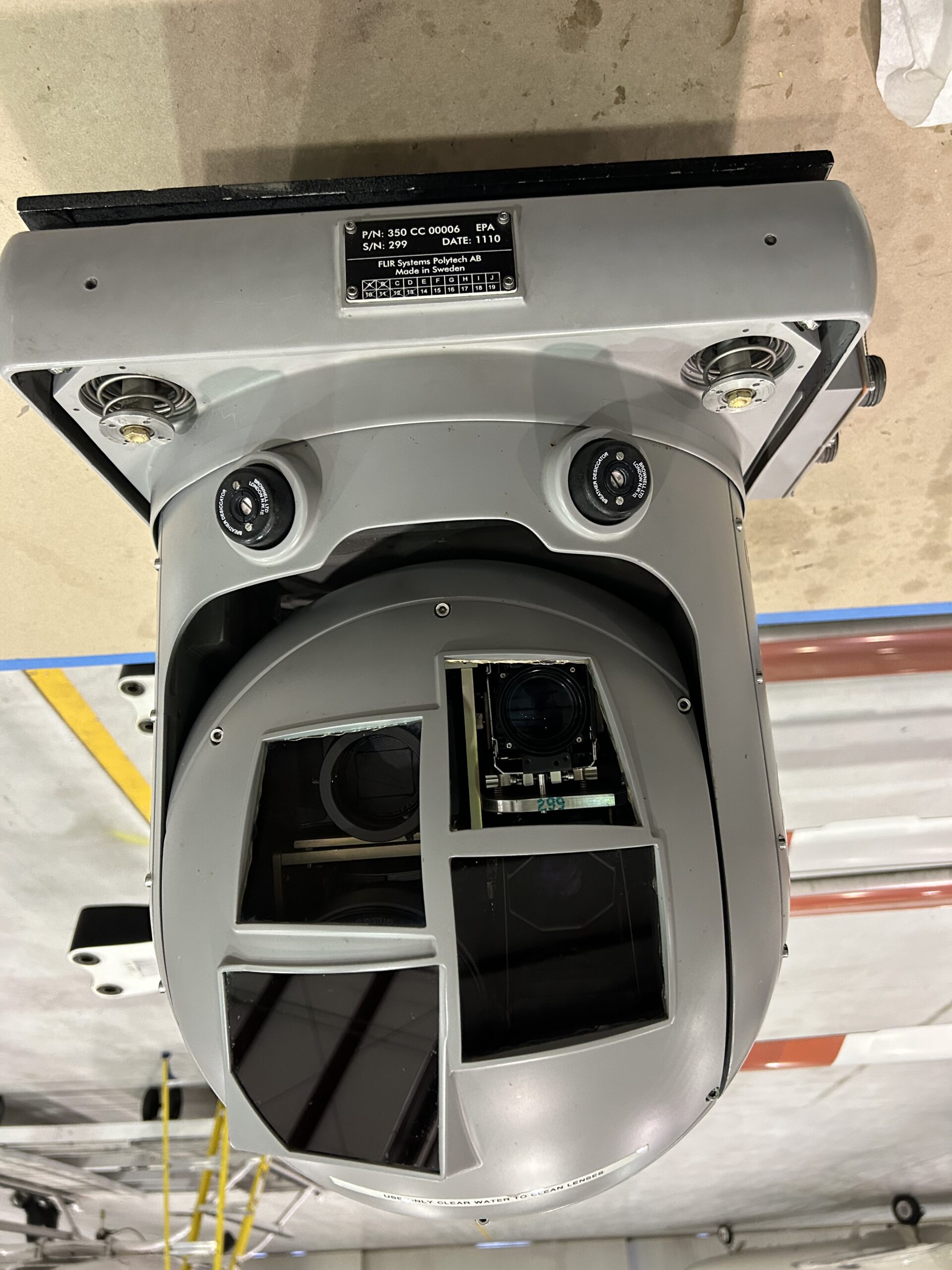

GIMBAL SPECIFICATIONS
- Active Gyro-stabilization 4 axis stabilization
- Field of Regard Elevation: +20° to –120°
- Azimuth: +360° continuous
- Maximum Slew Rate 60°/sec.
- Maximum Slew Acceleration >200°/sec/sec
- Diameter 13.8 in. (350 mm)
- Height 18.8 in. (478 mm)
- Weight (w/cameras and lens) 59.5 lbs. (27 kg)
- Input Voltage 22 to 30 VDC 10 amps
- Power Consumption < 150 watts
ENVIRONMENTAL SPECIFICATIONS
- Standards RTCA DO-160E
- Operating Temperature -20°C to +40°C

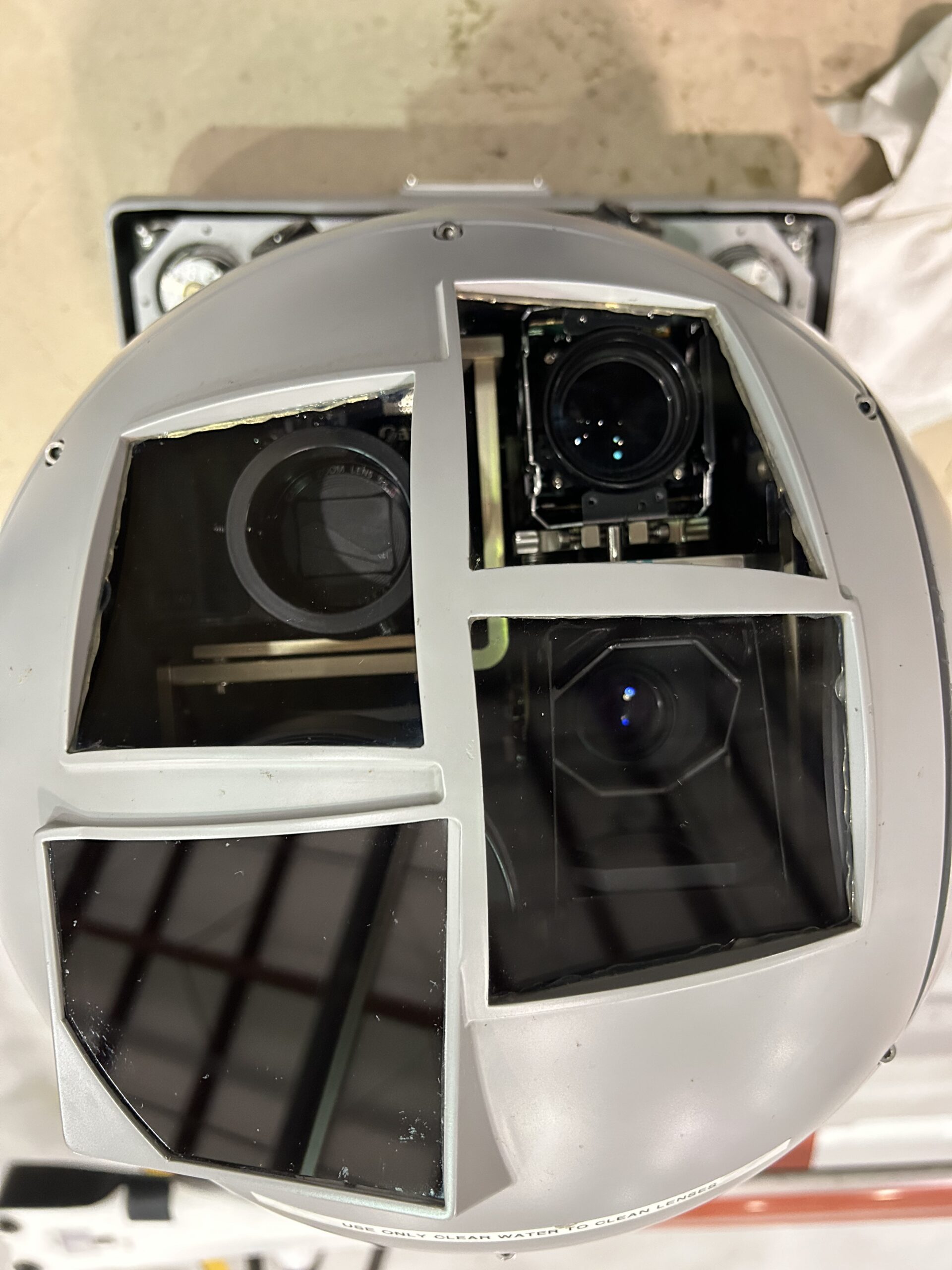

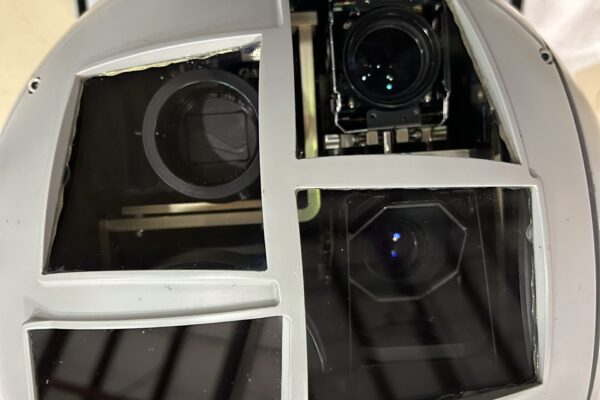

UV CORONA DETECTION CAMERA & LENS
- UV Sensitivity 8 x 10-18 watt/cm2
- Field of view 8o x 6o
- Optical channels UV and visible channels overlaid
- Focus Manual or automatic
- Visible channel Synchronized with UV channel
- Zoom Ratio 25:1 optical
INFRARED CAMERA & LENS
- Detector Technology Focal Plane Array, uncooled microbolometer
- Detector Size 640 x 480 pixels
- Spectral Wavelength 7.5-13μm
- Sensitivity 45mK @ 30°C
- Temperature Ranges -40°F to 2732°F (-40°C to +1500°C) in 3 ranges
- Accuracy }1°C or }1%
- Frame Rate 25Hz (PAL) or 30Hz (NTSC)
- Field of view 12° (H) x 9° (V)
- Focus Manual or automatic
COLOR TV CAMERA & LENS
- Detector Technology Color CCD EXview HAD
- Number of Pixels Approximately 380 000 (NTSC), 440 000 (PAL)
- Signal-to-Noise Ratio >50 dB
- Zoom 18 x optical, 2x electronic
- Field of view 48° Wide to 2.8°Narrow
- Focus Manual or automatic
DIGITAL STILL FRAME CAMERA
- Image Capture Device 1/1.7” CCD
- Number of Pixels Approx. 14.7 Megapixels
- Maximum aperture f/2.8 (W) – f/4.5 (T)
- Focal length 28-140mm (35mm film equivalent)
- Digital zoom 20x

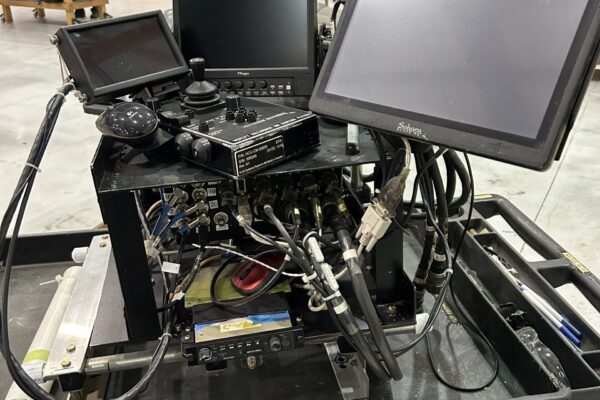

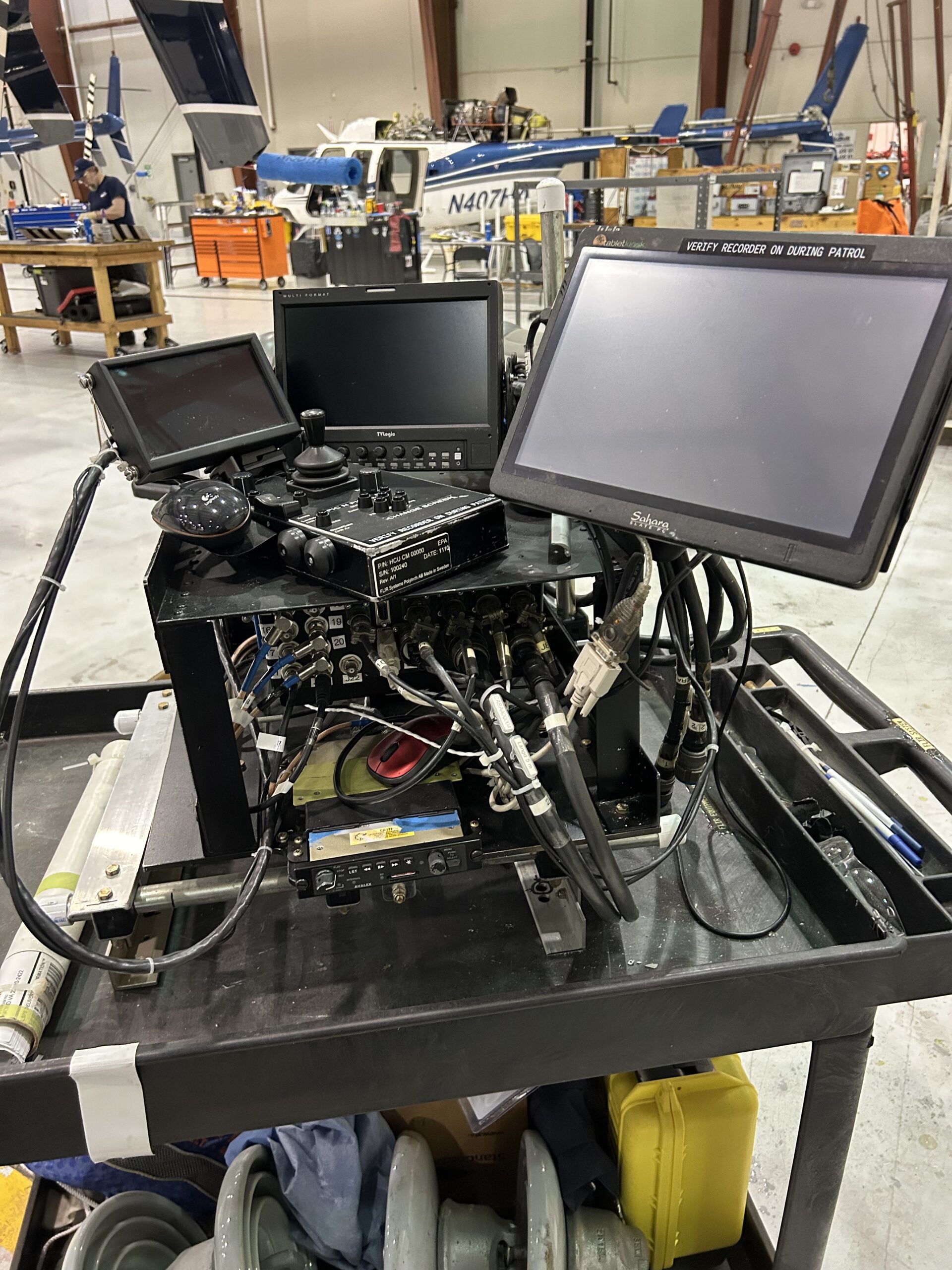

Also Included:
- Mounts to install tablet, recorder and other equipment using the existing seat cushion pins in a Bell 206BIII JetRanger
- Instruction manual for all components

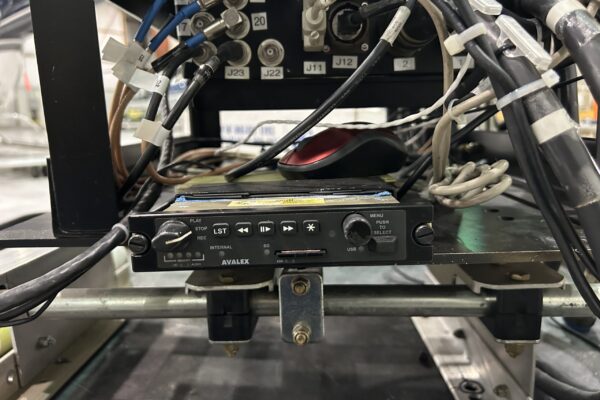

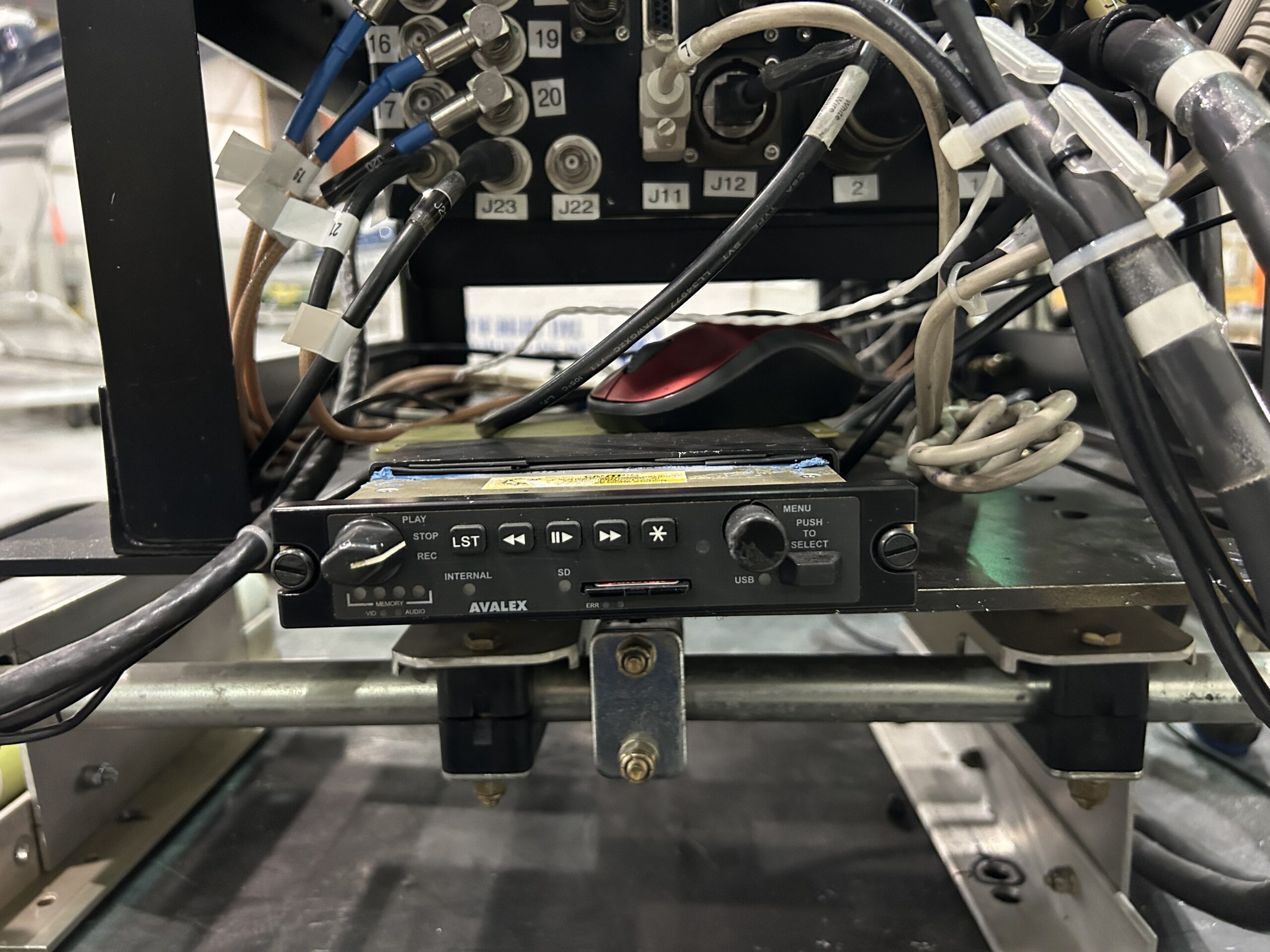

- AVR8200 Digital Video Recorder / Player
- TabketKiosk Sahara Slate PC i500
- Gimbal Carrying Case
